Subwoofer

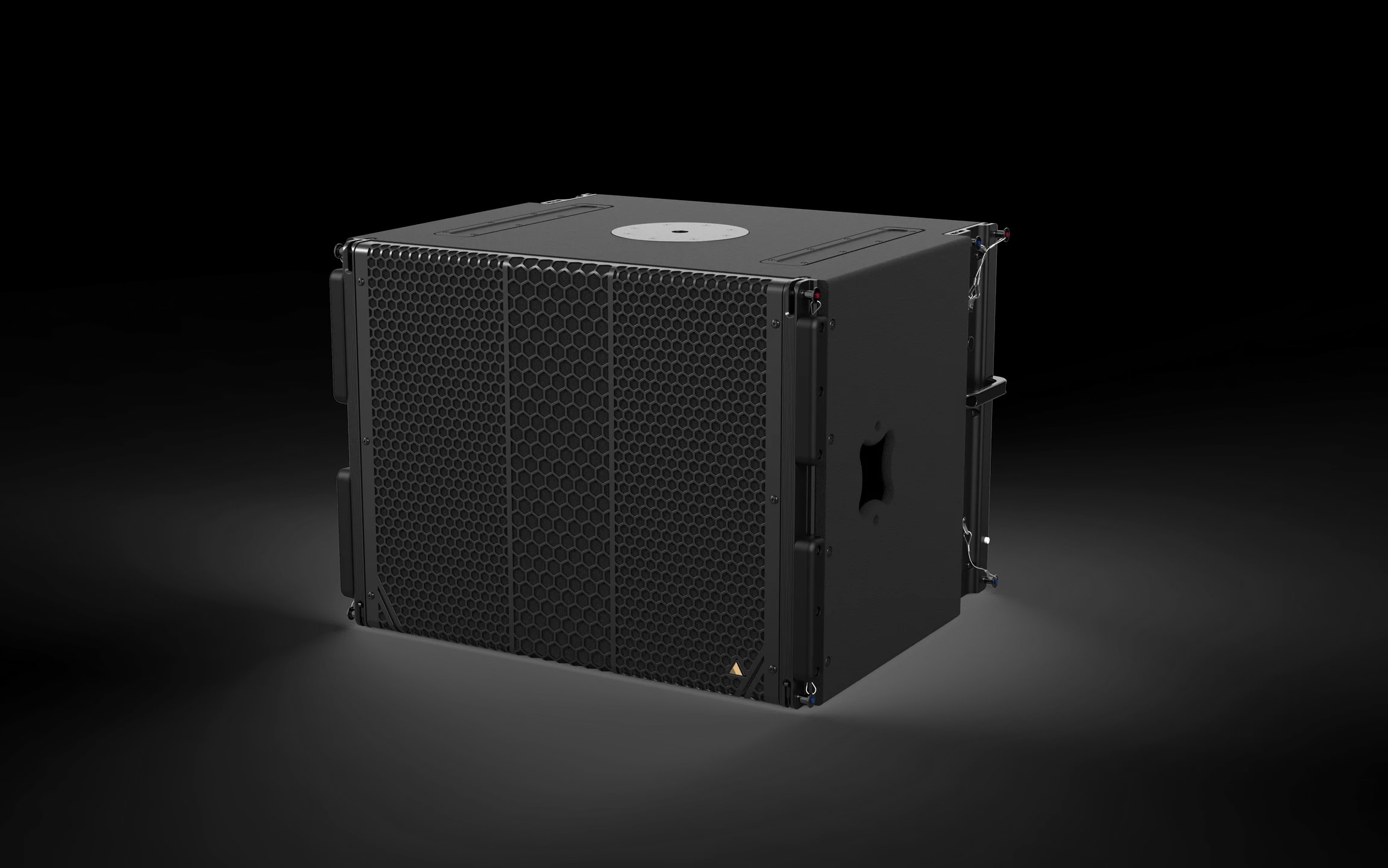

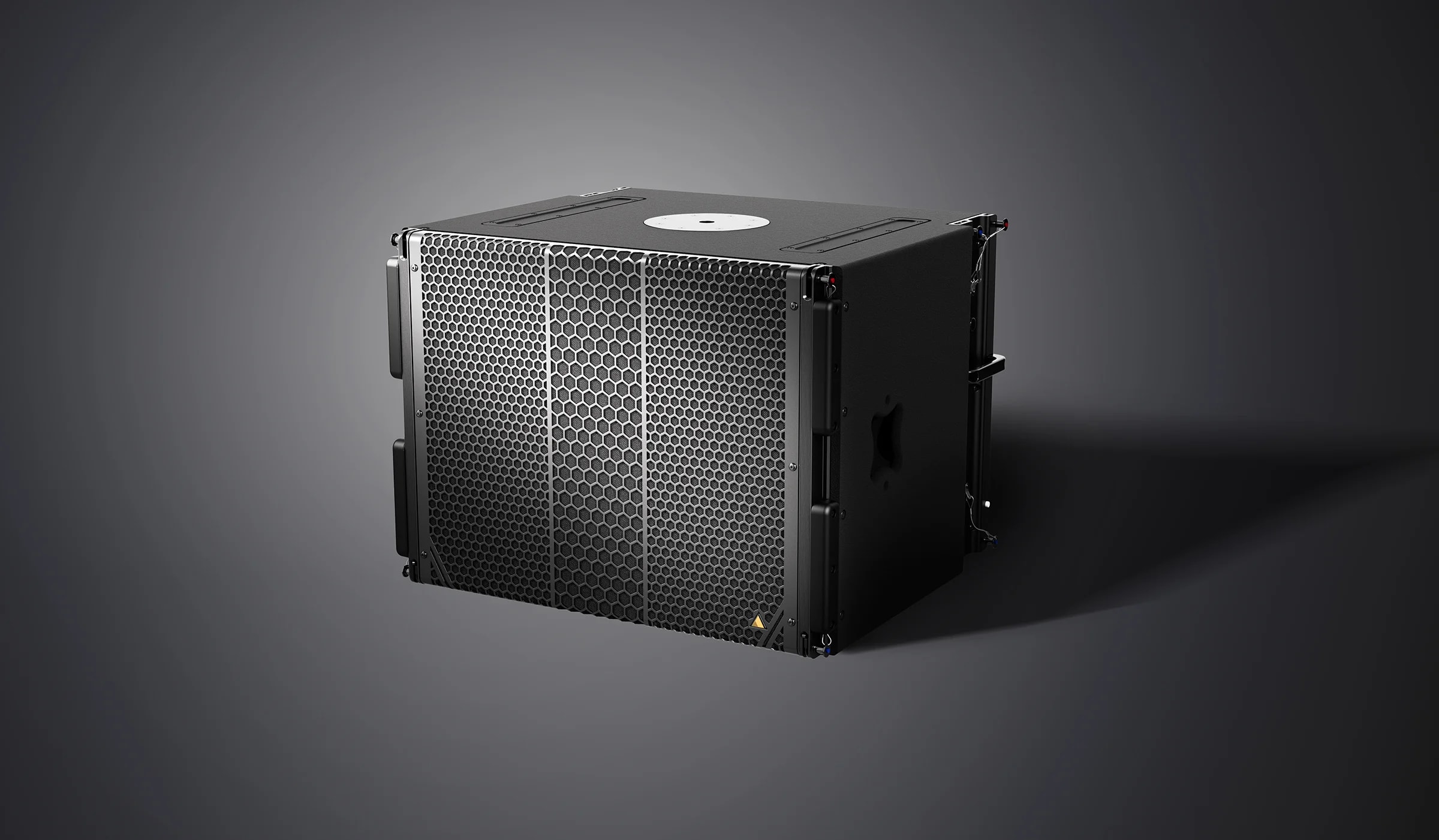

The CS119 is the larger subwoofer in the CS-Series, intended as a companion subwoofer to the CS10 & CS10p. Utilizing Adamson’s proprietary network platform, the CS119 employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the subwoofer are controlled and monitored through Adamson’s proprietary AI software.
The CS119 is loaded with a light weight, long excursion, 19” ND19 Kevlar® Neodymium driver utilizing Adamson’s Advanced Cone Architecture. The driver is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information.
The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. The rigging system offers a wide variety of possible solutions.
Please refer to the CS119 User Manual for further information.
| Frequency Range (+/-3 dB) | 30 Hz - 100 Hz (+/-3 dB) |
| Maximum Peak SPL** | 138 dB |
| Components LF | ND19 19” Kevlar Neodymium Driver |
| Rigging | Integrated Rigging System, Built-in M20 Thread |
| Connection | Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR |
| Height Front (mm / in) | 544 / 21.4 |
| Width (mm / in) | 742 / 29.2 |
| Depth (mm / in) | 630 / 24.8 |
| Weight (kg / lbs) | 51 / 112.4 |
| Amplification | Single channel Class-D, 3000 W total output |
| Input Voltage | 100 - 240 V |
| Current Draw at 230v | 0.45 A rms idle, 2.15 A rms long-term, 24 A max peak |
| Supported Processing | Onboard / Proprietary |
